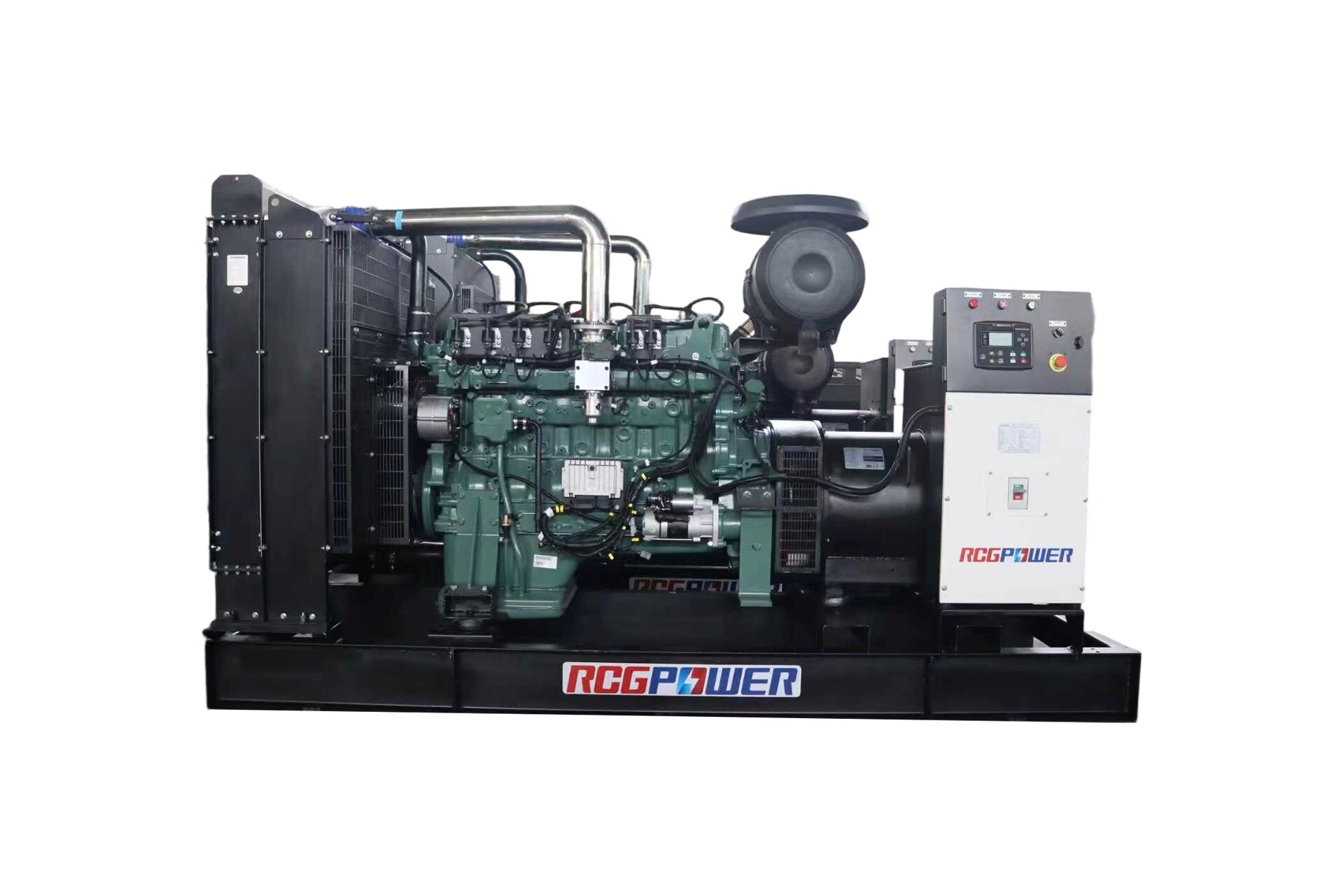

Gas generator sets are power generation equipment fueled by clean gases such as natural gas or biogas, integrating a gas engine with an electric generator. They feature low operating costs, clean emissions, and low noise levels, making them suitable for use in urban areas, residential zones, industrial parks, and other locations with stringent environmental requirements. These units serve as primary or backup power sources for commercial buildings, hospitals, schools, and similar facilities. They are also ideal for distributed energy systems and combined heat and power (CHP) applications, delivering stable, reliable, and sustainable power supply.
Unit Output: Rated voltage AC 380/400/415V, speed 1500 r/min, frequency 50Hz, power factor 0.8 lagging, connection method three-phase four-wire.
Circuit Breaker Selection: For power ratings of 640KW or rated currents up to 1250A, the standard configuration is the Delixi brand, three-phase molded case circuit breaker. For units with 640KW and rated currents exceeding 1250A, the circuit breaker is an optional accessory. For frameworks above 800KW, a separate output cabinet is required, with the brand to be determined based on client negotiation.
Rated operating conditions: ambient temperature of 25°C and altitude below 1000m.
Design and Design Standards: GB/T2820-2009.
Model | Prime Power | Standby Power | Engine | Alternator | Download |
|---|---|---|---|---|---|
R400N5
| 500kVA/400kW
| 550kVA/440kW
| RYC20-N1
| RC544C
| |
R320N5
| 400kVA/320kW
| 438kVA/350kW
| RYC16-N1
| RC444F
| |
R300N5
| 375kVA/300kW
| 413kVA/330kW
| RXC16-N1
| RC444FS
| |
R250N5A
| 313kVA/250kW
| 344kVA/275kW
| RXC13-N1
| RC444ES
| |
R250N5
| 313kVA/250kW
| 344kVA/275kW
| RDC13-N1
| RC444ES
| |
R200N5
| 250kVA/200kW
| 275kVA/220kW
| RDC10-N2
| RC274K
| |
R180N5
| 225kVA/180kW
| 248kVA/198kW
| RDC10-N1
| RC274J
| |
R150N5
| 188kVA/150kW
| 207kVA/165kW
| RDC9-N1
| RC274H
| |
R120N5
| 150kVA/120kW
| 165kVA/132kW
| RDC8-N1
| RC274EL
| |
R90N5
| 113kVA/90kW
| 128kVA/99kW
| RDC6-N3
| RC274D
| |
R80N5
| 100kVA/80kW
| 110kVA/88kW
| RDC6-N2
| RC274C
| |
R64N5
| 80kVA/64kW
| 88kVA/70kW
| RDC6-N1
| RC224G
| |
R45N5
| 57kVA/45kW
| 63kVA/50kW
| RDC4-N3
| RC224E
| |
R40N5
| 50kVA/40kW
| 55kVA/44kW
| RDC4-N2
| RC224D
| |
R30N5
| 38kVA/30kW
| 42kVA/33kW
| RDC4-N1
| RC184H
|
Model | Prime Power | Standby Power | Engine | Alternator | Download |
|---|---|---|---|---|---|
R260N6
| 325kVA/260kW
| 358kVA/286kW
| RDC13-N1
| RC444D
| |
R200N6
| 250kVA/200kW
| 275kVA/220kW
| RDC10-N2
| RC274J
| |
R180N6
| 225kVA/180kW
| 248kVA/198kW
| RDC10-N1
| RC274H
| |
R150N6
| 188kVA/150kW
| 206kVA/165kW
| RDC9-N1
| RC274F
| |
R120N6
| 150kVA/120kW
| 165kVA/132kW
| RDC8-N1
| RC274DL
| |
R100N6
| 125kVA/100kW
| 138kVA/110kW
| RDC6-N3
| RC274D
| |
R80N6
| 100kVA/80kW
| 110kVA/88kW
| RDC6-N2
| RC224GL
| |
R64N6
| 80kVA/64kW
| 88kVA/70kW
| RDC6-N1
| RC224F
| |
R50N6
| 63kVA/50kW
| 69kVA/55kW
| RDC4-N3
| RC224E
| |
R45N6
| 56kVA/45kW
| 62kVA/50kW
| RDC4-N2
| RC224D
| |
R32N6
| 40kVA/32kW
| 44kVA/35kW
| RDC4-N1
| RC184H
|
